Data Measurement & Analysis
Data Measurement & Data Analysis Services
By ensuring data accuracy, repeatability, and traceability, we help organizations extract maximum value from testing and monitoring activities while reducing uncertainty and development risk.
Key Capabilities :
-
■
Instrumentation & Measurement Strategy. -
■
High-Quality Data Acquisition. -
■
Advanced Data Analysis & Interpretation -
■
Correlation & Validation -
■
Reporting & Decision Support -
■
Service Load Data Acquisition -
■
Realtime Wheel Force Measurement on Vehicle ranging from 3 W (11”) to Heavy Trucks wheel rim size (22.5”) -
■
Vehicle Frame & its Aggregate Measurement -
■
Subjective & Objective Evaluation -
■
Benchmarking & Performance evaluation -
■
Ride & Handling Characterization -
■
Fuel Economy Measurements -
■
HVAC Measurements
Improvement of fatigue life and reliability
Improvement of comfort
Adoptable to both on track & in lab measurement
- Ride & Handling Evaluation
- Tire Development

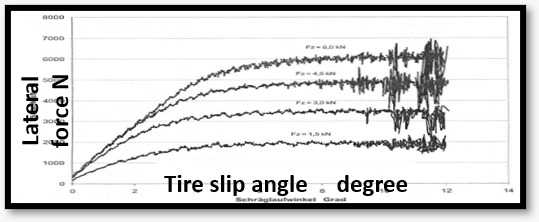

- Tire Characterization
On-Track & Lab Measurements
Adaptable to both laboratory and real-world track testing environments.
INSTRUMENTATION CAPABILITIES
Setting
INSTRUMENTATION CAPABILITIES

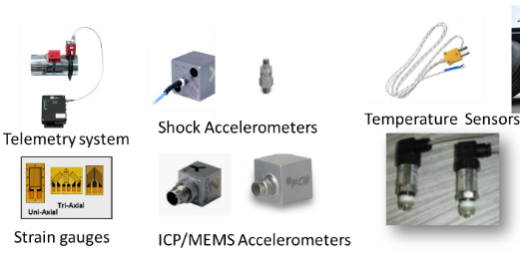

Sensors Tool Kit

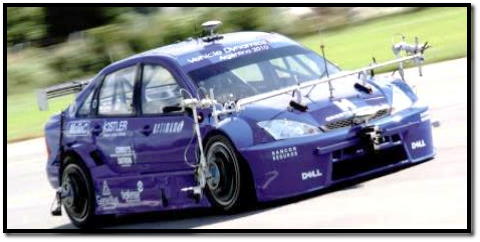

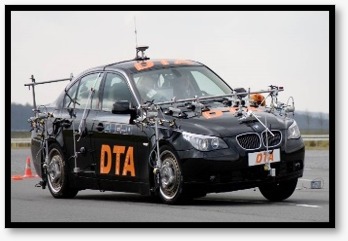

Instrumentation Ride & Handling
2 axial speed sensor
Steering angle & torque
Dynamic camber angle measurement
Wheel displacement, camber & steer

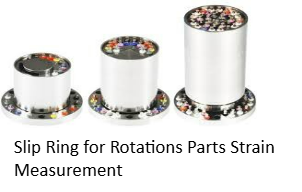

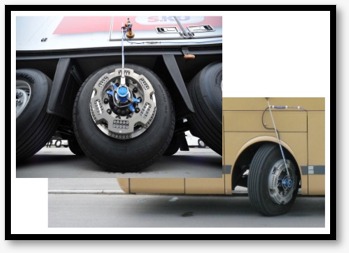

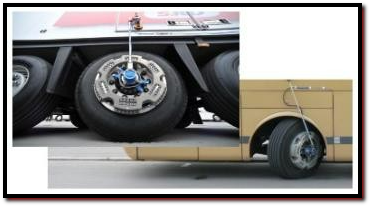

Wheel Force Transducers
Road Profile Measurement System

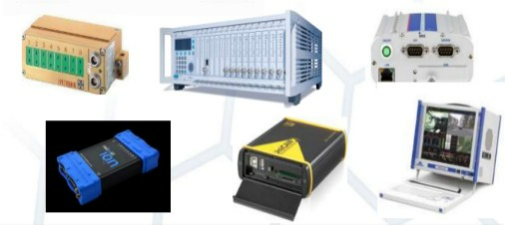

Sensors & Data Acquisition system & Analysis tools
- • WFT wheel load capacity ranging from 20 kN to 180 kN.
- • WFT rims available from 11 inch to 22.5 inch covering applications from Passenger Cars to Heavy Commercial Vehicles (HCV).
- ➤ High speed data acquisition for 400+ synchronous channels.
- ➤ High range, miniature telemetry systems for wireless data measurement.
- ➤ Wheel Force Transducers from Passenger Car to HCV.
- ➤ Ride & Handling sensors & systems.
- ➤ Road profile measurement system for Track Digitization.
- ➤ Vehicle tracking & video data logging.

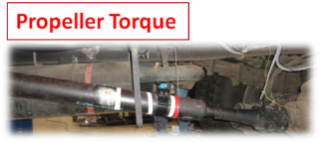

- ➤ Vehicle/component level duty cycle measurement sensors & systems.
- ➤ OBD/CAN parameter logging.
- ➤ Temperature Mapping for 100+ synchronous channels.
- ➤ Ballistic Shock Measurement – Accelerometer Sensors.
- ➤ Complex & Variety of Strain Gauge Toolkits.
we can go forValidation/ Optimization
Road / Field Load Data Acquisition (RLDA)

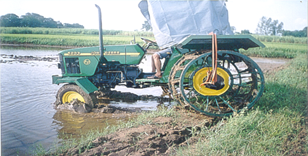

Agricultural Tractor

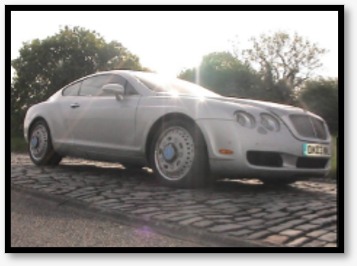

Passenger Car

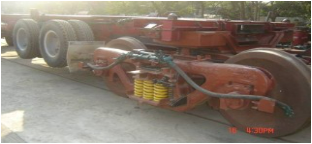

Road-Railer

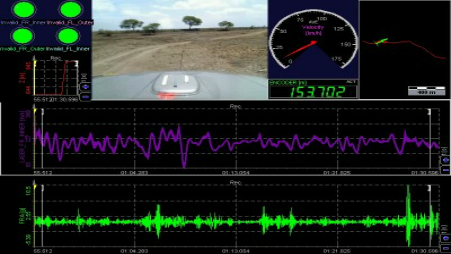

RLDA Monitoring & Analysis
Advantages
- ◆ CAE Validation and Identification of Probable Failure Locations
- ◆ Derive Accelerated Test Specifications for Components and Sub-Assemblies
- ◆ Benchmarking Support
- ◆ End-to-End Engineering Solutions
RLDA Services Can be Offred Throughout the World As per Customer Requirement
Worldwide RLDA Coverage
RLDA Coverage Across India
RLDA Services Can be Offred Throughout the World As per Customer Requirement
- ✓ In-house / Laboratory Applications
- ✓ Customer Site Testing
- ✓ Agricultural Field Applications
- ✓ Construction Field Applications
- ✓ Mining Sites (Underground & Open Cast)
- ✓ Defence Test Sites
- ✓ International Projects (China, Germany & Other Countries)
- ✓ Various Parts of India

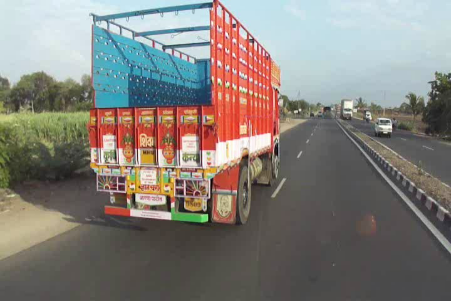

- ✓ Indian Roads – National Highways, State Highways, Suburban & Hill Roads
Data analysis
Structural Life Evaluation
Vehicle Dynamics Performance
Benchmarking
DATA ANALYSIS
- ◆ Subjective & Objective Evaluation
- ◆ Powertrain Performance – Engine & Transmission
- ◆ Braking / Acceleration / Gear Performance
- ◆ Ride & Handling Characterization
- ◆ Fuel Economy Measurements
- ◆ HVAC Measurements
- ◆ Human Machine Interface (HMI) Measurements
- ◆ Field validation: Running the vehicles in various climatic and road conditions
COMPONENT & SUB-SYSTEM LEVEL BENCHMARKING
- ◆ Performance Benchmarking
- ◆ Duty Cycle Data Generation
- ◆ Statistical Analysis
ACCELERATED DURABILITY
- ◆ Fatigue / damage / Rainflow analysis
- ◆ Customer Usage correlation
- ◆ Laboratory Simulation and life assessment
VIRTUAL SIMULATION
- ◆ Mechanical Hardware-in-loop
- ◆ System-level Model Order Reduction (MOR)
- ◆ Mathematical Model Development & validation
- ◆ Vehicle Dynamics Optimization
Tools
◆ LabView, TESIS – veDYNA, MSC-Adams, Matlab
TEST METHODOLOGY
- ◆ Test specification estimation

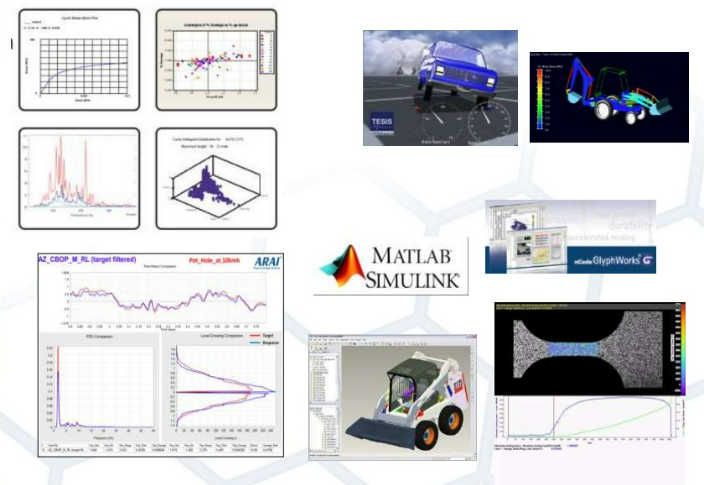

Analysis Tool Kit

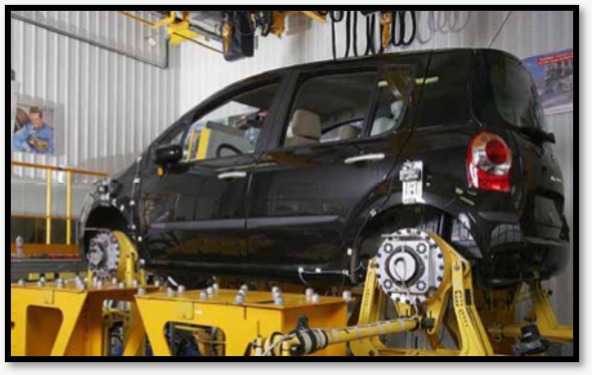

Laboratory Simulation & Analysis
- ✓ RPC Pro & CRPC Pro
- ✓ nCode – Glyph Works, n-Soft
- ✓ MATLAB • Virtual Simulation
- ✓ LabView ✓ TESIS – veDYNA
- ✓ MSC-Adams • Design & Drawing
- ✓ AutoCAD & Pro-E
Material Characterization
Basic & Advance Data Analysis
- ✓ Time Series
- ✓ Spectral Statistical
- ✓ Rain flow
- ✓ Ride comfort
- ✓ Damage estimation Customer Correlation
